The next generation of quadruped robots will be expected to operate outside of a controlled indoor setting. They walk on rocky paths, rough construction sites, paths in forests, fields, and industrial facilities where stability and accuracy are key. The realization of this degree of mobility is strongly reliant on the actuator system, which is responsible for providing motion to each joint. A good robot motor is capable of delivering the torque, responsiveness, and control necessary for the robot to navigate through unpredictable environments, maintain balance, operate efficiently, and withstand varying conditions.
1.Why Terrain Adaptability Matters in Quadruped Robotics
The motors need to respond almost instantaneously to the variations in load and ground conditions as each leg continually adapts its position. Slow and/or irregular reactions or torque can decrease stability, leading to less efficient movement and more slips or unnecessary corrections.
Hence, modern quadruped platforms are developed based on actuators which are compact and intelligent. This helps robots produce smooth walking patterns and can easily adjust to the environment without any loss of performance.
2.Power and Precision Create Stable Movement
In the world of locomotion, strength is not a reliable indicator of reliability. A balance of torque output, positioning accuracy and responsive motion control is needed in quadruped robots.
Compact actuators can produce high levels of force without the additional weight due to high torque density. Meanwhile, precision encoders constantly track the movement of the joints, and the control system adjusts quickly to ensure the robot maintains its balance for each step.
Key Performance Characteristics
- High torque density for demanding movements
- Lightweight actuator construction
- Rapid response during gait transitions
- Precision position feedback through dual encoders
- Stable operation during continuous motion
These attributes are especially useful if the robots are doing activities like climbing a slope, recovering from unexpected disturbances, or transporting equipment over difficult terrain where each joint helps stabilize the robot.

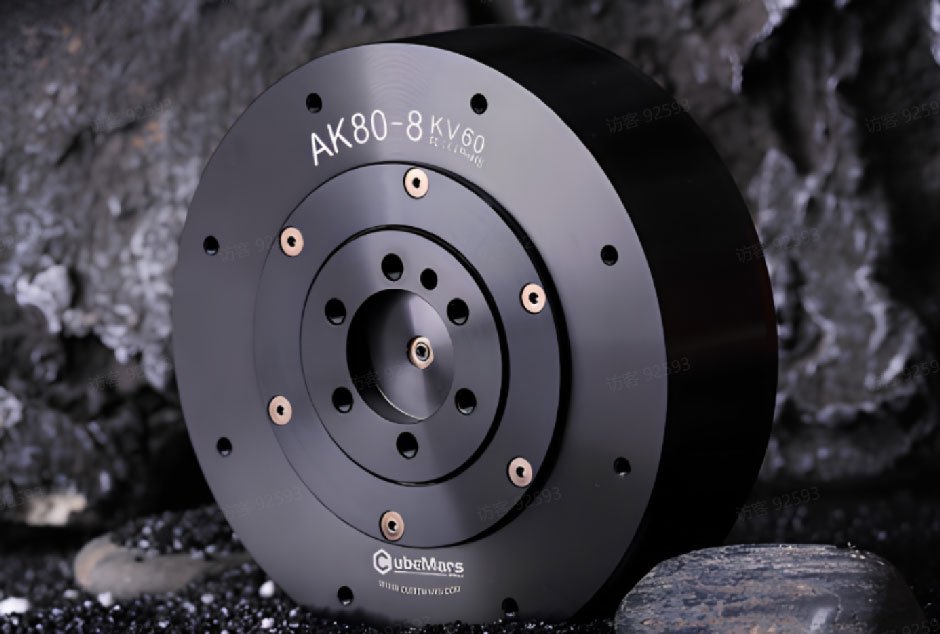

3.How Quadruped Robot Motor Technology Improves Mobility
Incorporating several technologies into a single actuator package, the Quadruped Robot Motor is the basic component of advanced robotic locomotion. Modern integrated systems integrate brushless motors, precision gearboxes, encoders, and drive electronics into a single package, which simplifies mechanical design and improves overall performance, rather than relying on separate drive components.
Brushless motor technology provides powerful, efficient performance in different operating conditions. Precision gearboxes enable robots to increase the torque they can use without increasing the rotational speed, which reduces energy consumption when performing challenging tasks.
Continuous monitoring of both motor input and joint output with high-resolution dual encoders. This dual-feedback design enhances the accuracy of the robot’s movements, enabling it to adjust its leg coordination and move more effectively on rough terrain.
Manufacturers like CubeMars have created complete solutions of actuators for quadruped robots, which are based on high torque density, lightweight design and precise gait control. These features enable high-durability motion such as quick-start, climb, jump and dynamic balance and make the system simple for the robot developers.
4.Integrated Actuators Support Dynamic Robotic Performance
Modern quadruped robots often switch their gait mode according to their environment. Actuator systems are different when it comes to walking, trotting, running, climbing, and negotiating obstacles.
Integrated robotic actuators make these transitions easy because they are coordinated motion systems that integrate mechanical and electronic components. Engineers can use small actuator modules instead of a collection of separate devices to reduce installation and communication complexity.
Features That Enhance Dynamic Motion
- Integrated brushless motor and gearbox design
- Selectable force control and servo drive modes
- Dual input and output encoder architecture
- Fast communication interfaces for responsive control
- Compact structure supporting lightweight robot designs

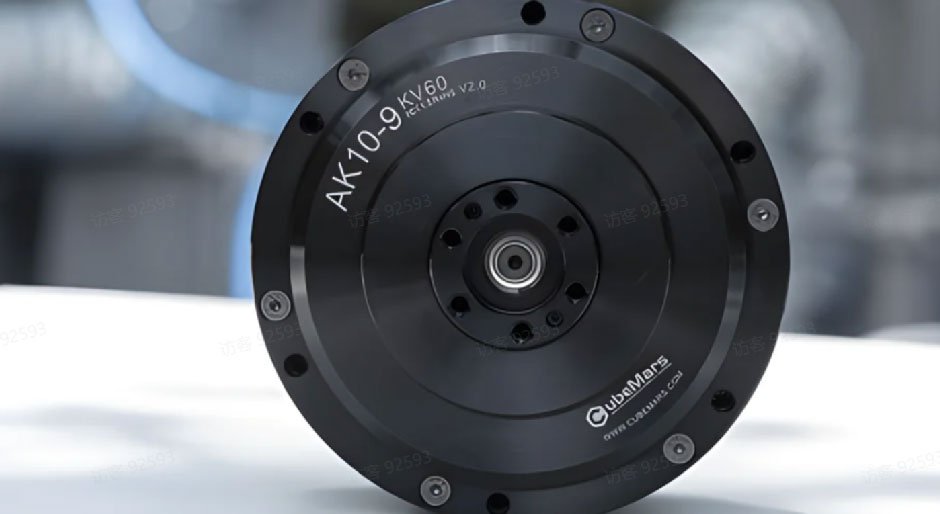

This is exemplified by a number of actuator configurations. Models like AK10-9 V3.0 KV60 can be used up to 18Nm rated torque and up to 53Nm peak torque, and the AK80-64 KV80 can be used up to 120Nm peak torque for more demanding robotic applications. Other actuator choices offer the smoothest high-torque operation, adaptive PID configuration, intelligent parameter identification and seamless switching from one control mode to the other, enabling designers to choose the best solutions for their robots.
5.Selecting the Right Robot Joint Motor for Challenging Tasks
The selection of a suitable Robot Joint Motor should take into account the operating environment instead of just one operating parameter. Indoor robots might be more concerned with efficiency and accuracy of positioning, while outdoor service robots might need more torque reserve and impact resistance.
Torque capability is a measure of joints’ ability to transfer acceleration, climb and support a load. The accuracy of the encoder is directly related to the accuracy of positioning and gait uniformity. Multiple joints can also synchronously move more efficiently depending on the type of communication interfaces, like UART or CAN.
Actuator size, weight, thermal performance, and available modes of control are also factors that are taken into account when designing a robotic platform. Integrated solutions simplify wiring and increase package efficiency, particularly in the packaging of compact quadruped robots where space is at a premium.
A well-fitted joint motor enables the robot to have smoother movement and adjust to different terrain without putting excessive strain on mechanical parts.
6.Intelligent Control Strengthens Stability on Uneven Ground
Stable locomotion requires hardware plus. Advanced control algorithms continuously analyze input from the encoders and modify the torque output and coordinate the movement of all legs to ensure that the robot maintains balance during movement.
Each joint is loaded differently when a quadruped robot comes across loose gravel, slopes or uneven obstacles. Intelligent control systems quickly adapt to these changes and adjust actuator operation in real time. This constant adjustment allows for more efficient walking patterns, while minimizing unwanted vibration and energy loss.
These capabilities are complemented by integrated actuator designs, which enable force control and servo control to be used efficiently as per the task requirement. Some advanced actuators feature built-in intelligent parameter identification and adaptive control configuration, which significantly decrease commissioning time and enhance motion uniformity under various operating conditions.
Responsive electronics and high-performance actuators allow robots to respond naturally to changing environments and move in a controlled, predictable manner.
7.Future Trends in Quadruped Robot Motion Systems
Quadruped robotics is still in its early stages of development and is increasingly being adopted in a variety of fields, such as industrial inspection, logistics, research, agriculture, emergency response, and infrastructure maintenance. The future development of actuators is aimed at improving motion intelligence, energy efficiency, reducing system weight and increasing torque density.
The integrated actuator architectures will be even smaller and have greater output and more sophisticated control features. Advances in sensing technologies, communication networks, and control algorithms will further enhance the robot’s capability to cope with the uncertainty of the terrain while requiring minimal operator input.
CubeMars and other manufacturers with a long history of motor research and in-house actuator development are continuing to develop robotic power systems to meet these evolving needs.
Conclusion
The mechanical leg design is only one of several key factors in reliable terrain navigation. Each successful step is based on actuator systems which provide responsive torque, precise positioning, intelligent control and efficient power transmission. The use of high-performance integrated motors allows quadruped robots to achieve better balance, adjust to their environment, and perform complex movements with confidence.
With the development of robotic mobility moving forward, it is vital to choose the right well-designed actuator solutions to ensure reliable performance in a variety of environments. In order to meet the needs of a wide variety of real-world applications that require stable intelligent locomotion, lightweight construction, precision feedback and powerful torque output are combined to enable modern quadruped robots to perform better in rough terrain.
